Chemstation won't print from chromatogram from Data Analysis

9 years ago
#119 Quote
Chemstation won't print a chromatogram.  However the results print fine.
0
9 years ago
#120 Quote
We need more information then that.  Please give us info marked in bold
  Printer Model and driver
  Chemstation version
  Service packs and/or point patches loaded
  Sequence problems?
  Computer type and model
  Operating System
  Has the OS or the Agilent software already been reloaded?
  Do they have the Agilent backup solution and a backup created?
  Is the firewall turned off?
  Does the computer have two NICs?
  Is the computer connected to the customer's network?
  LAN card configuration
  IP address(s)
0
9 years ago
#121 Quote
The PC is new HP Z220 with E02.02 SP2 chemstation.
OS is Windows 7 32 bit

Have not reloaded OS yet, trying to avoid that.
0
9 years ago
#122 Quote
OK, thanks for providing info.  First check make sure printer is selected under "File" -> "select printer".  Under "Method" -> "edit method", under "quant report " make sure the printer check box is selected.  Can you see the chromatogram if you set the printer to "Microsoft XPS writer"?  This will save a file as an image in stead of being sent to a printer, but it's calling the same mechanism.

Let me know which buttons you are clicking on exactly when trying to print.

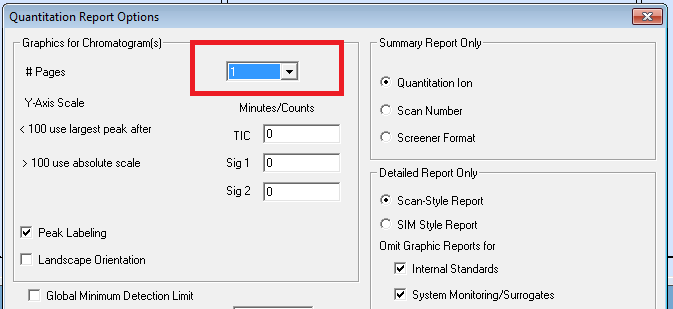

One more thing, under "Quantitation" menu item "Quantitation options", make sure # pages is set to at least 1.

0
9 years ago
#123 Quote
Ooops, it was set to "none".  I feel stupid……
0
9 years ago
#140 Quote

David wrote:
There is no stupid questions here
